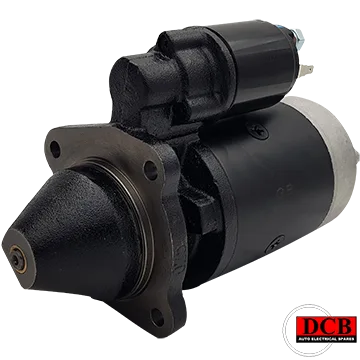

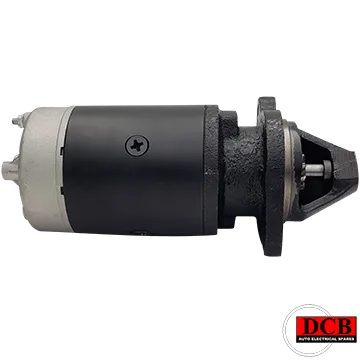

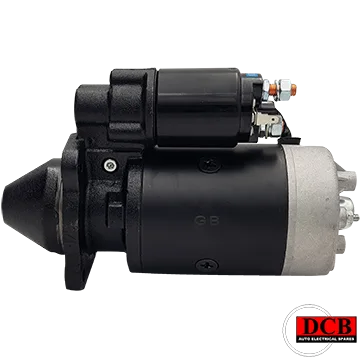

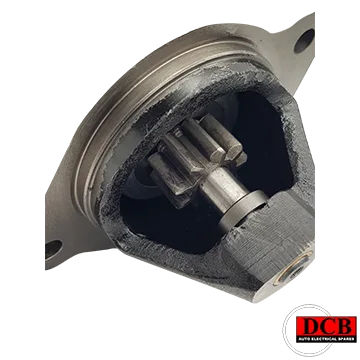

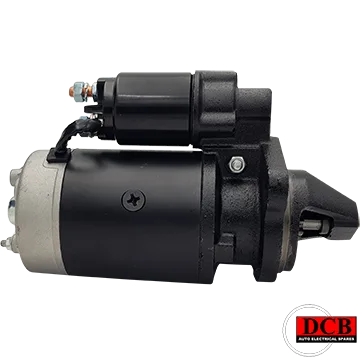

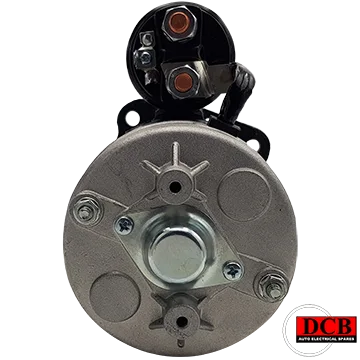

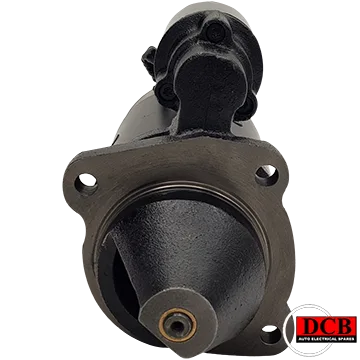

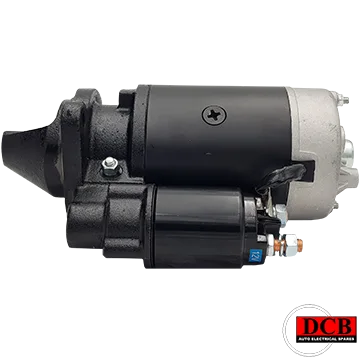

Starter, Fendt/ MWM / Deutz / KHD IF, 12V, 2.7KW, 9T

Aftermarket replacement. Vehicle names and OE references identify compatibility, not the manufacturer of this part. Confirm fitment with DCB before ordering.

Let’s check the right fit.

Contact our team for current pricing, availability and compatibility with your vehicle.

Have your vehicle details and original part number ready. We’ll help confirm the match.

THE DETAILS THAT MATTER

Product specifications.

Technical details from the DCB product catalogue.

Voltage: 12V
Power: 2.7KW
No of Teeth: 9
Mounting holes: 3
Rotation direction: CW (CLOCKWISE)
Gearing type: DD (DIRECT DRIVE)
Item model: IF
Engine type/number: DEUTZ FENDT FENDT FARMER FENDT FAVORIT KHD MWM RENAULT
OEM Number: 0001362306, 0001362314, X830100006
Alternate Part#: • A=Centre to Centre of Mounting Holes • A1=Centre to Centre of Mounting Holes • A2=Centre to Centre of Mounting Holes • A3=Centre to Centre of Mounting Holes • B=Centre to Centre of Mounting Holes • B1=Centre to Centre of Mounting Holes • B2=Centre to Centre of Mounting Holes • B3=Centre to Centre of Mounting Holes • C=Centre to Centre of Mounting Holes • C1=Centre to Centre of Mounting Holes • C2=Centre to Centre of Mounting Holes • C3=Centre to Centre of Mounting Holes • D=Distance from Face Flush to where Bendix/Drive is Forward/Engaged • E=Bendix-Drive at Rest (Distance from Face Flush to where Bendix/Drive is at Rest) • F=Distance from Face Flush to where Solenoid Ends (Including Terminals) • G=Spigot Outside Diameter (Where Starter Fits into Bell Housing) • H=Nose Width at thickest point. • I=Outside Diameter of Bendix/Drive Gear (Vernier Locked on Teeth) • I2=Outside Diameter of Bendix/Drive Gear (Max OD) • J=Total Height of Starter • K=Total length of starter • KW=Kilowatts • L=Clockwise (CW) or Anti/Counter Clockwise (CCW) • MH=Number of Starter Mounting Holes • N=Nose Length From Face Flush to End of Nose • ODY=OD of Yolk/Field Coil Housing • S=Same as "G" - Spiggot OD (Drive End Bracket Spec Diagram) • Teeth=Number of Teeth • U=Inside Diameter of Mounting Hole and if Threaded • U1=Inside Diameter of Mounting Hole and if Threaded • U2=Inside Diameter of Mounting Hole and if Threaded • UDS=Distance of Mounting Hole from Spiggot • UDS1=Distance of Mounting Hole from Spiggot • UDS2=Distance of Mounting Hole from Spiggot • V=Inside Diameter of Mounting Hole and if Threaded • V1=Inside Diameter of Mounting Hole and if Threaded • V2=Inside Diameter of Mounting Hole and if Threaded • VDS=Distance of Mounting Hole from Spiggot • VDS1=Distance of Mounting Hole from Spiggot • VDS2=Distance of Mounting Hole from Spiggot • VOLTS=Volts • W=Inside Diameter of Mounting Hole and if Threaded • W1=Inside Diameter of Mounting Hole and if Threaded • W2=Inside Diameter of Mounting Hole and if Threaded • WDS=Distance of Mounting Hole from Spiggot • WDS1=Distance of Mounting Hole from Spiggot • WDS2=Distance of Mounting Hole from Spiggot • X=Inside Diameter of Mounting Hole and if Threaded • X1=Inside Diameter of Mounting Hole and if Threaded • X2=Inside Diameter of Mounting Hole and if Threaded • XDS=Distance of Mounting Hole from Spiggot • XDS1=Distance of Mounting Hole from Spiggot • XDS2=Distance of Mounting Hole from Spiggot
